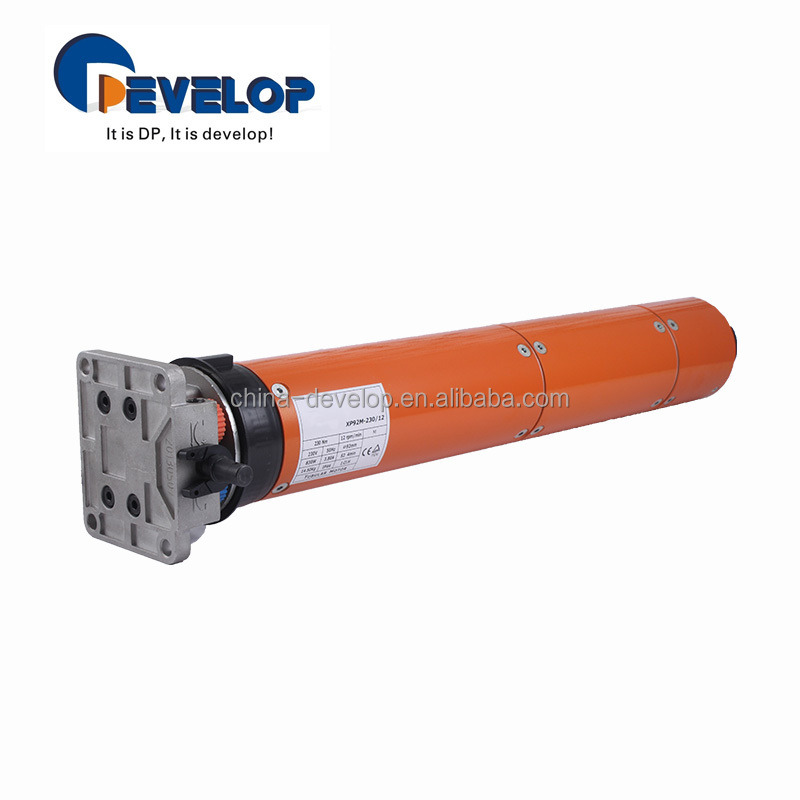

Easy lifting top quality rolling door tubular motor
1. The max. Lift capacity reached 500kg with different size of tubes
2. electromagnetic brake system are adopted to make sure the motor security
3. Manual override devices ensure the normal operating in case of emergency and power failure
4. 5 year of warranty
| Rated torque (N.m) | Rated Voltage (V) | Rated Frequency | Rated Power Input | Tube Diameter |
| 180N.m | 230V | 50HZ | 626W | 92MM |
| 230N.m | 230V | 50HZ | 830W | 92MM |
| 300N.m | 230V | 50HZ | 920W | 92MM |
| 330N.m | 230V | 50HZ | 980W | 92MM |
| 500N.m | 230V | 50HZ | 980W | 92MM |
| Rated Current (A) | Running time (Min) | Rated Speed(Rpm) | Protection Index(IP) | Insulation class |
| 2.8A | 4MIN | 12RPM | IP44 | Class H |
| 3.8A | 4MIN | 12RPM | IP44 | Class H |
| 4.2A | 4MIN | 9RPM | IP44 | Class H |
| 4.5A | 4MIN | 9RPM | IP44 | Class H |
| 4.5A | 4MIN | 5.5RPM | IP44 | Class H |
