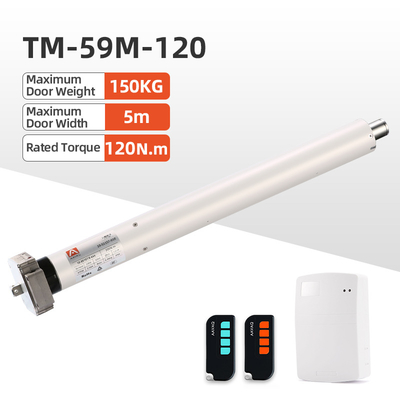

AAVAQ TM-59M 120N Null Remote Control Tubular Motor For Garage Doors High Speed

10 Units
MOQ
$102.50(10 - 49 Units) $82.00(50 - 199 Units) $71.75(>=200 Units)
가격
AAVAQ TM-59M 120N Null Remote Control Tubular Motor For Garage Doors High Speed
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
Warranty: 3 years
After-sale Service: Online technical support
Project Solution Capability: Others
Application: Villa
Design Style: Null
Model Number: TM-59M-120
Item: Tubular Motor
Color: Red
Rated Torque: 120 Nm
Radio: KEELOQ Hopping Code, 433MHz
Maximum Distance: 80m
Remote Control: 2 Remotes Included in Box
Safety Protection: Infrared Photobeam Connection, Pneumatic Safety Strip
Low Voltage Protection: Yes
Set Choices of Accessories: Round / Octagonal
Diameter: 59mm
기본 정보
Model Number: TM-59M-120
결제 및 배송 조건
Packaging Details: LCL/FCL: - Motor Unit, Control Unit. two remote controls, Set of Crown, Adapter, Idler and complete accessories - all stacked on wodden pallets - app. 1000 sets per 20' Container
Supply Ability: 100000 Piece/Pieces per Month
제품 설명
Products Description
Technical Specifications
TM-59M-120
Maximum Door Weight (80mm / 106mm)
150kg/120kg
Maximum Door Width (80mm / 106mm)
5m/4m
Maximum Turns
18
Diameter
59mm
Rated Torque
120N.m
Rated Speed
9rpm
Rated Power
400W
Rated Current
1.75A
Nominal Input Voltage
220V AC±10%
Maximum Run Time
4min
Degree of Protection
IP44
Connect to APPLink Smartphone Controller
Yes
Operating Temperature
-20°C to +50°C
Radio
KEELOQ Hopping Code,433MHz
TX Capacity On-Board Receiver
Standard 2, Max. 49 Transmitter;
TX Included in Box
2 Transmitter (Remotes) Included
Maximum Distance
80m
Weight
10.8kg
